Kubernetes

HISTORY

ONLINE PLATFORM FOR K8s

CLOUD BASED K8s SERVICES

KUBERNETES INSTALLATION TOOL

Alternative of Kubernetes

Problems with Containers

Features of Kubernetes

 graph LR;
A[On Premises]
B[On Cloud]
C[Virtual]
A-->B
B-->A
B-->C
C-->B
C-->A
A-->C
Fetaures Kubernates Docker Swarm
Insttallation and Cluster configruation Complicated and time consuming Fast and Easy
Support K8s can work with almost all conatiner
types like rocket , docker ,containerD		 Work with docker only
GUI Available Not Available
Data Volumes only shared with conatiners in same
POD		 can be shared with any containers
Updates and Roleback Process scheduling to maintain services
while updating		 Progressive updates of service health
monitoring through the update
Auto Scalling Supports both Horizontal and Vertical Scalling Not support autoscalling
Logging and Monitoring Inbuilt tool for monitoring used third party tool like splunk

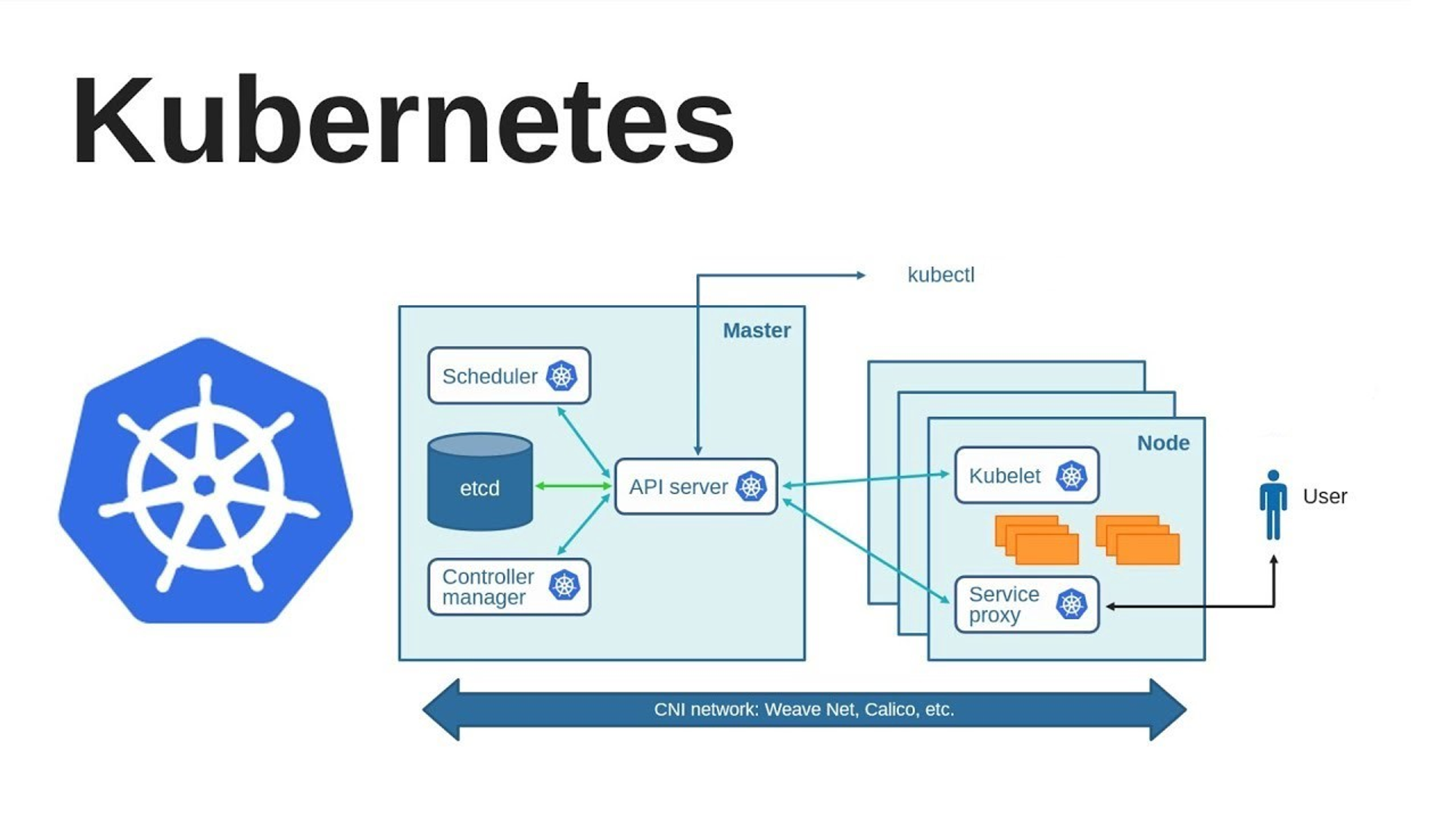

KUBERNETES Architecture

graph LR;
A[Kubernetes Cluster]
subgraph Master
B[Secheduler]
C[(etcd)]
D([Controller <br> Manager])
G[API Server]
B-->G
C-->G
D-->G
end
subgraph Node
F([Kubelet])
H([Service <br> Proxy])
end
E[kubectl]
G-->F
G-->H
E-->G
G-->E
I[User]
H-->I

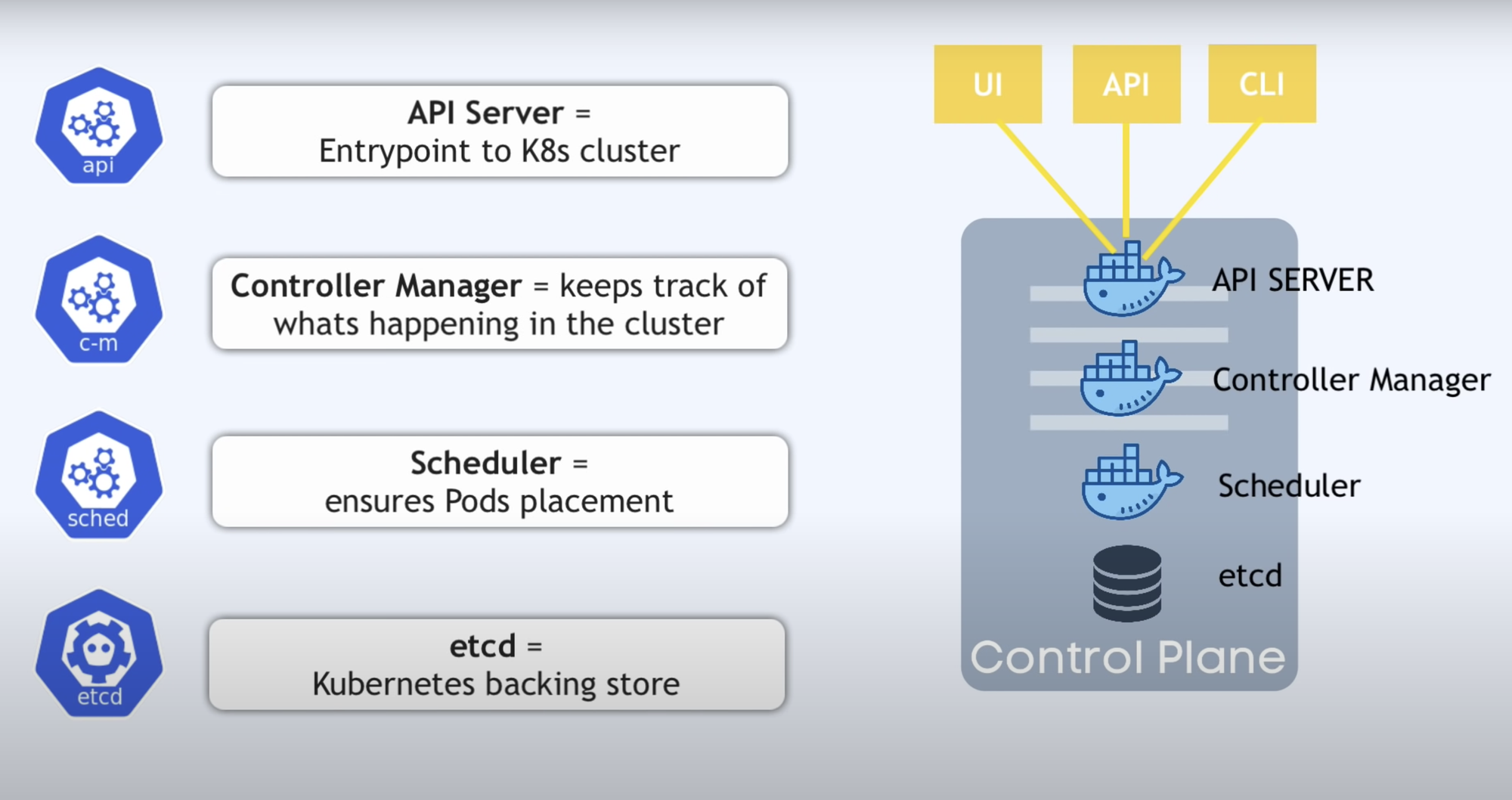

Architecture Architecture 2

Types

graph TB;
subgraph type_1
A[Master]-->B[Node/Worker]
end
subgraph type_2
C[Master]-->D[Node/Worker]
subgraph node
POD
end
C-->E[Node/Worker]
C-->F[Node/Worker]
end
subgraph type_3
G[Master]-->H[Node/Worker]
I[Master]-->J[Node/Worker]
G-->J
I-->H
K[Master]-->L[Node/Worker]
end
K-->H
K-->J
G-->L
I-->L

graph TD;
A[Cluster]-->B[Node]
A-->C[Node]
A-->D[Node]
A-->E[Node]
A-->F[Node]
A-->G[Node]
B-->H[POD]
B-->I[POD]
B-->J[POD]
B-->K[POD]
B-->L[POD]
H-->M[Container]
H-->N[Container]
H-->O[Container]
H-->P[Container]
H-->Q[Container]
M-->R[Apllication/Microservice]
N-->S[Apllication/Microservice]
O-->T[Apllication/Microservice]
P-->U[Apllication/Microservice]
Q-->V[Apllication/Microservice]

Working with Kubernetes

Components

(1). Kube- api-server (For all Communications)

(2). etcd

(3). Kube-scheduler

(4). Kube-controller-manager

(5). Kubelet

(6). Kube-proxy

(7). Container Runtime

(8). Kubectl

Key features and functions of kubectl include:

  1. Cluster Management: Kubectl allows users to create, update, and delete Kubernetes clusters. Users can interact with multiple clusters simultaneously, enabling seamless management of distributed environments.
  2. Resource Management: Users can use kubectl to create, inspect, update, and delete Kubernetes resources such as pods, deployments, services, namespaces, and more. These resources define the desired state of applications running on the Kubernetes cluster.
  3. Deployment Operations: Kubectl facilitates deploying applications onto Kubernetes clusters. Users can create deployment manifests or use higher-level deployment controllers like Deployments or StatefulSets to manage application lifecycle.
  4. Scaling: With kubectl, users can scale applications horizontally or vertically by adjusting the number of replicas or the resources allocated to pods.
  5. Monitoring and Debugging: Kubectl provides commands to monitor the health and status of resources within the cluster. Users can troubleshoot issues by inspecting logs, describing resources, or executing commands within pods.
  6. Security: Kubectl supports various authentication mechanisms to ensure secure access to Kubernetes clusters. It allows users to configure role-based access control (RBAC) and manage user permissions effectively.
  7. Customization and Extensibility: Kubectl is highly extensible and customizable through plugins and custom resource definitions (CRDs). Users can extend its functionality to meet specific requirements or integrate with other tools and systems.

Kubectl commands typically follow the syntax:

kubectl [command] [TYPE] [NAME] [flags]

Where:

Overall, kubectl is a powerful tool that simplifies the management and operation of Kubernetes clusters, enabling users to efficiently deploy and manage containerized applications at scale.

(9). Pod

A Pod is the smallest deployable unit in Kubernetes, representing a single instance of a running process in the cluster. It encapsulates one or more containers, storage resources, and configuration options related to how the containers should run. Pods are fundamental building blocks in Kubernetes, providing a higher-level abstraction over individual containers.

Key features and characteristics of Pods include:

  1. Atomic Unit of Deployment: Pods serve as the basic unit of deployment in Kubernetes. They encapsulate one or more containers that are tightly coupled and need to share resources or work together.

  2. Co-located Containers: Pods enable running multiple containers within the same network and storage context. These containers can communicate with each other using local host networking and share the same lifecycle.

  3. Shared Resources: Containers within a Pod share the same network namespace, IP address, and port space, facilitating inter-container communication through localhost. They can also share volumes mounted into the Pod's filesystem, allowing them to exchange data.

  4. Application Lifecycle Management: Pods define the desired state of the application, including which containers should be running and their configuration. Kubernetes orchestrates the creation, scaling, and termination of Pods based on the desired state specified in the Pod manifest.

  5. Pod States: Pods can be in various states during their lifecycle, including Pending, Running, Succeeded, Failed, or Unknown. These states indicate the current status of the Pod and whether it's successfully running its containers.

  6. Pod Lifecycle Hooks: Pods support lifecycle hooks, allowing users to execute custom logic at different stages of the Pod lifecycle. Hooks include pre-start and post-start actions, enabling tasks such as initialization, configuration, or cleanup.

  7. Resource Management: Pods can specify resource requests and limits for CPU and memory, ensuring fair resource allocation and preventing resource contention among containers running on the same node.

  8. Pod Affinity and Anti-affinity: Kubernetes allows users to specify affinity and anti-affinity rules for Pods, influencing how they are scheduled onto nodes. This feature helps optimize resource utilization and improve application performance by controlling Pod placement.

  9. Pod Networking: Pods are assigned a unique IP address within the Kubernetes cluster, allowing them to communicate with other Pods and external services. Kubernetes networking plugins handle the routing of traffic between Pods and ensure network isolation and security.

Overall, Pods provide a flexible and scalable way to deploy and manage containerized applications in Kubernetes. By encapsulating one or more containers and their associated resources, Pods simplify application deployment, scaling, and management in distributed environments.
