Program

• A program is that which resides on our harddisk
  • Like c++ program in .cpp

Process

• A process is nothing but a program in execution

graph LR;
A[Program]
subgraph Code
B[main function]--Compiler-->C[Binary Program]
C--Execution-->D[Process]
end

Single Tasking System(MS DOS)

graph LR;
A[New Program]
B[Memory]
C[Finished/Terminated]
A-->B
B-->C

• In Single Tasking System, only one program can be executed at a time
• When a program is finished, it is terminated and removed from memory
• Then the next program is loaded into memory and executed
• If Process is doing so I/O operation, then CPU is idle and waiting for I/O operation to complete and this is very inefficient and wastage of CPU time

Multi Programming System

• Where multiple processes runs at the same time and CPU is never idle

Multi Tasking System

• Where multiple processes runs at the same time and CPU is never idle and a time slice is given to each process
• A fixed Quantum of time is given to each process and after that time, the process is preempted and another process is given a chance to execute

graph LR;
A[New<br> <br>Stored In<br>HardDisk]--Created-->B[Ready<br><br>Came to RAM]
B--Dispatched-->D[Running]
D--Time Out/High Priority-->B
D--Last Statement <br>Executed / Finished-->E[Finished]
D--I/O Request-->F[Waiting]
F--I/O Completion-->B

Some modifications in above diagram

graph LR;
A[New<br> <br>Stored In<br>HardDisk]--Created-->B[Ready<br><br>Came to RAM]
B--Dispatched-->D[Running]
D--Time Out/High Priority-->B
D--Last Statement <br>Executed / Finished-->E[Finished]
D--I/O Request-->F[Waiting]
F--I/O Completion-->B
F--Suspend-->G[Suspend/Blocked<br> <br>Stored In<br>HardDisk]
G--I/O Completion-->H[Suspend/Ready<br><br>Came to RAM]
G--Resume-->B
B--Suspend-->G

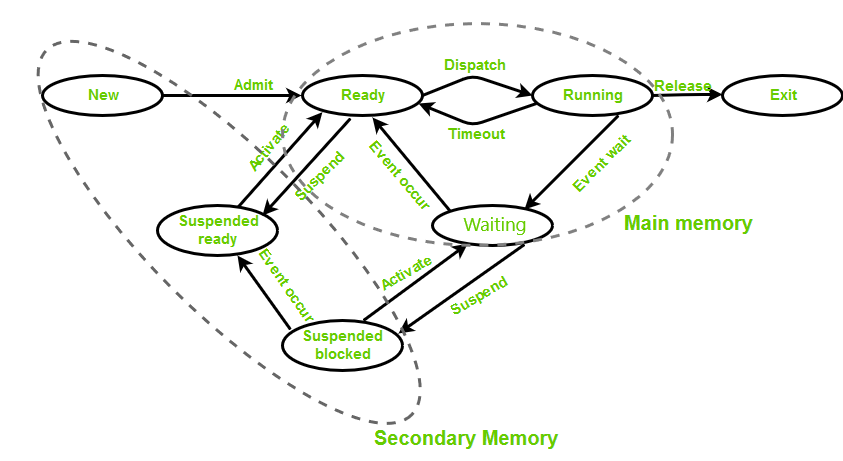

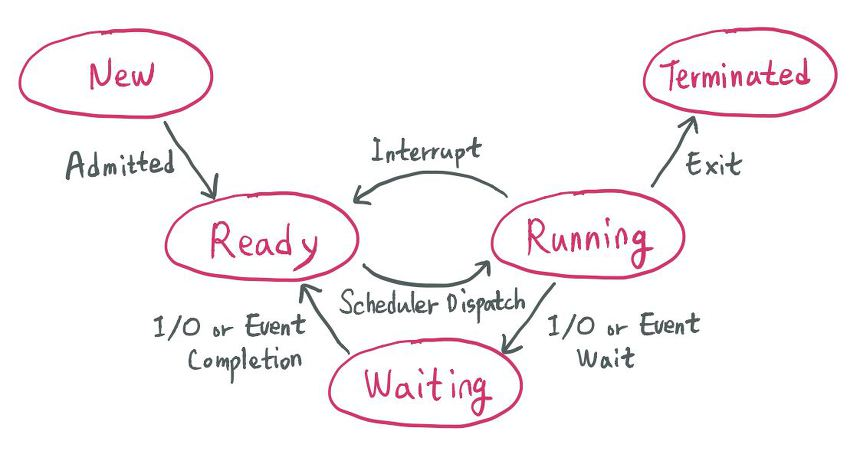

• 5 State Model
• 7 State Model

Process Control Block(PCB)

• PCB is a data structure maintained by os for every process

• PCB used for storing the collection about the processes

• PCB identified by an integer process ID(PID)

• PCB lies in Kernel Memory space

• PCB deleted once the process id completed



graph LR;
subgraph PCB
A[Process ID]
B[Process State]
C[CPU Registers]
D[Accounts Information]
E[I/O information]
F[CPU Scheduling Information]
G[Memory Information]
end

• Process ID
  • Unique identification for each processes in the operating system
• Process State
  • Current state of process wheter process is running ,ready or waiting
• Pointer
  • A pointer to parent process
• CPU Registers
  • All the CPU registers where the process is stored for execution for example PC,SP,AX,BX,CX,DX etc
• Accounts Information
  • Process priority,Process owner,Process ID
• I/O information
  • I/O devices allocated to process
• CPU Scheduling Information
  • Process priority,Process state,Process ID
• Memory Information
  • Code,Data,Stack

Process Scheduler

graph TB;
A[Process Scheduler]
B[Ready Queue]
C[Process Control Block]
D[CPU]
E[Process]
A-->B
B-->C
C-->D
D-->E

• Process Scheduler is a part of operating system which is responsible for selecting the processes from the ready queue and allocating the CPU to one of them

graph TB;
A[Process Scheduler]
B[Long Term Scheduler<br>brings the process from<br>Disk to RAM and<br>makes it ready<br><br><br>decision made by <br> Long Term Scheduler<br>came into action<br>after a long time]
C[Short Term Scheduler <br>brings the process from<br>Ready Queue to CPU<br><br><br>also known as Dispatcher<br>decision made by <br> Short Term Scheduler<br>came into action<br>after a short time]
D[Medium Term Scheduler <br>moves the processes from waiting<br> to suspended state and <br>also from ready state<br> to suspended state<br><br><br>it brings the suspended process<br> from disk to RAM<br>and vice versa<br>used widely in<br>virtual memory]
A-->B
A-->C
A-->D

Queues in OS(Process Scheduling Queues)

graph TB;
A[Job Queue<br>when the process is created<br>it is added to job queue]
B[Ready Queue<br>when the process is ready<br>it is added to ready queue<br>These are in RAM]
C[I/O Queue <br>when the process is waiting<br>for I/O operation<br>it is added to I/O queue]
D[Queues]
D-->A
D-->B
D-->C

Short Term Scheduler and Dispatcher

• Short term scheduler is only responsible for selecting the process from the ready queue and then Dispatcher came in to action
• Dispatcher is responsible for allocating the CPU to the selected process
• Dispatcher is also known as context switcher
• Dispatcher is responsible for saving the context of the current process and loading the context of the selected process

graph TB;
subgraph Ready Queues
1
2
3
4
5
end
A[with the help of short term scheduler<br>using scheduling algorithms<br>one of the process is selected<br>from the ready queue]
B[3<br>PID:3<br>Process State:Running<br>CPU Registers:PC,SP,AX,BX,CX,DX<br>]
3-->B
C[PCB of 3]
C-->B
subgraph CPU
R1[Register 1]
R2[Register 2]
R3[Register 3]
R4[Register 4]
end
B-->R1
B-->R2
B-->R3
B-->R4
R1--saving the response-->B
R2--saving the response-->B
R3--saving the response-->B
R4--saving the response-->B
X[Dispatcher came<br> in to Action]
Y[Short term Schedulers]
Y-->3
X-->B
A-->3

When Short term Scheduler came into action

• A). when some other processes moves from running to waiting.
• B). When some other processes moves from running to ready
• C). When new/existing process moves to ready(priority is higher)
• D). When a process terminates
• Premptive Scheduling in B and C case only
• Preemptive Scheduling is a scheduling in which a process can be preempted from CPU and another process can be allocated to CPU

Various Time Related to the Processes

graph LR;
A[Process]
B[Ready]
C[Run]
D[Complete]
E[Counter]
A--Arrival<br>Time-->B
B--Waiting<br>Time-->C
C--Burst<br>Time-->D
D--Completion<br>Time-->E

• ⭐Arrival Time: Time at which the process arrives in the ready queue.
• ⭐Completion Time: Time at which process completes its execution.
• ⭐Burst Time: Time required by a process for CPU execution.
• ⭐Turn Around Time: Time Difference between completion time and arrival time. Turn Around Time = Completion Time – Arrival Time
• ⭐Waiting Time(W.T): Time Difference between turn around time and burst time. Waiting Time = Turn Around Time – Burst Time
• ⭐Arrival Time=1 ⭐Completion Time=6 ⭐Turn Around Time = 6-1=5 ⭐Burst Time=3 ⭐Waiting Time = 5-3=2

Goals of CPU Scheduling

• ⭐Max CPU Utilization
• ⭐Max Throughput
• ⭐Min Turn Around Time
• ⭐Min Waiting Time
• ⭐Min Response Time
• ⭐Fair CPU Allocation(No starvation)

graph TB;
A[Algorithms]
B[FCFS: First Come First Serve]
C[SJF: Shortest Job First]
D[Priority]
E[Preemptive Shortest Job First]
F[Round Robin]
G[Multi Level Queue Scheduling]
H[Multi Level Feedback Queue Scheduling]
A-->B
A-->C
A-->D
A-->E
A-->F
A-->G
A-->H

FCFS Algorithm

• Criteria : Arrival time
• Mode: Premptive
• First come first serve basis algorithm

Process	Arrival Time	Burn Time
P1	2	6
P2	5	3
P3	1	8
P4	0	3
P5	4	4

• TAT: Turn Around Time = Completion Time - Arrival Time
• TAT = Waiting Time + Burst Time
• RT : Response Time = Time at which process first gets the CPU - Arrival Time
• Gantt Chart

gantt
title FCFS Algorithm Gantt Chart
dateFormat HH:mm
axisFormat %H:%M
Initial milestone : milestone, m1, 00:00, 0m
    P4 : 3m
    P3 : 8m
    P1 : 6m
    P5 : 4m
    P2 : 3m
    Final milestone:milestone, p2

graph LR;
P4[P4<br>start:0<br> end3]
P3[P3<br>start:3<br> end:11]
P1[P1<br>start:11<br> end:17]
P5[P5<br>start:17<br> end:21]
P2[P2<br>start:21<br> end:24]
P4-->P3
P3-->P1
P1-->P5
P5-->P2

Process	AT	BT	CT	TAT (CT-AT)	WT (TAT-BT)	RT (Start-AT)	Start Time	End Time
P1	2	6	17	15	9	9	11	17
P2	5	3	24	19	16	16	21	24
P3	1	8	11	10	2	2	3	11
P4	0	3	3	3	0	0	0	3
P5	4	4	21	17	13	13	17	21

Average  WT =	(9+16+2+0+13)/5=8
Average TAT =	(15+19+10+3+17)/5 =12.8

Advantages of FCFS
Simple and Easy to implement
Non Premptive	Once we assign processor to the process we can not un assign back
Convoy Effect	One CPU bound has taken multiple I/O bounds
Waiting Time	Comes due to Convoy effect

PID	AT	BT	CT	TAT	WT	RT	ST	ET
P1	0	40	40	40	0	-	-	-
P2	1	3	43	42	39	-	-	-
P3	1	1	44	43	42 Avg=27	-	-	-

gantt
    dateFormat HH:mm
    axisFormat %H:%M
    Initial milestone : milestone, m1, 00:00, 0m
    P1: 40m
    P2: 3m
    P3: 1m
    Final milestone : milestone,P3

graph LR;
A[P1<br>ST:0<br>ET:40]
B[P2<br>ST:40<br>ET:43]
C[P3<br>ST:43<br>ET:44]
A-->B-->C

PID	AT	BT	CT	TAT	WT	RT	ST	ET
P1	1	40	44	43	3	-	-	-
P2	0	3	3	3	0	-	-	-
P3	0	1	4	4	3 Avg=2	-	-	-

gantt
    dateFormat HH:mm
    axisFormat %H:%M
    Initial milestone : milestone, m1, 00:00, 0m
    P2: 3m
    P3:1m
    P1:40m
    Final milestone :milestone, P1

graph LR;
A[P1<br>ST:4<br>ET:44]
B[P2<br>ST:0<br>ET:3]
C[P3<br>ST:3<br>ET:4]
B-->C-->A

graph
A[In both Waiting time is largely differing<br> so this is a huge problem]

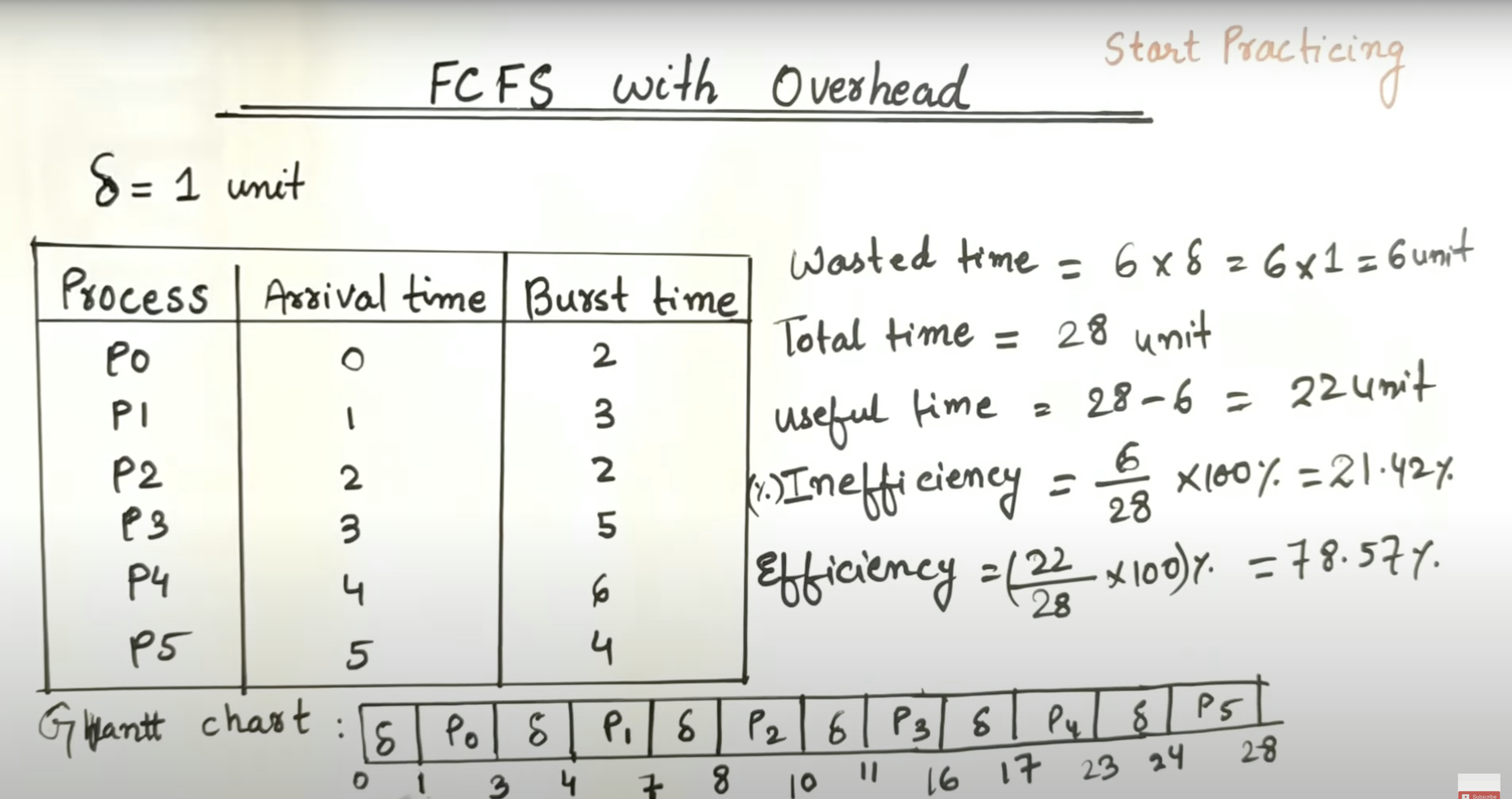

FCFS With Overhead

• Taking time for next process

Shortest Job First(SJF)

• Shortest Job First is a scheduling algorithm in which the process having the shortest burst time is selected for the execution
• Criteria : Burst time
• Mode:Non Premptive

PID	AT	BT	CT	TAT	WT	RT	ST	ET
P1	2	6	-	-	-	-	-	-
P2	5	2	-	-	-	-	-	-
P3	1	8	-	-	-	-	-	-
P4	0	3	-	-	-	-	-	-
P5	4	4	-	-	-	-	-	-

gantt
title Shortest Job First Gantt Chart
dateFormat HH:mm
axisFormat %H:%M
Initial milestone : milestone, m1, 00:00, 0m
P4:3m
P1:6m
P2:2m
P5:4m
P3:8m
Final milestone:milestone,P3

graph LR;
A[P4<br>ST:0<br>ET:3]
B[P1<br>ST:3<br>ET:9]
C[P2<br>ST:9<br>ET:11]
D[P5<br>ST:11<br>ET:15]
E[P3<br>ST:15<br>ET:23]
A-->B-->C-->D-->E

PID	AT	BT	CT	TAT	WT	RT	ST	ET
P1	2	6	9	7	1	1	3	9
P2	5	2	11	6	4	4	9	11
P3	1	8	23	22	14	14	15	23
P4	0	3	3	3	0	0	0	3
P5	4	4	15	11	7	7	11	15

• Avg Waiting time =5.2 and it is lesser
• implemented through mean heap algorithm
• it is greedy algorithm
• TC : O (nlogn)

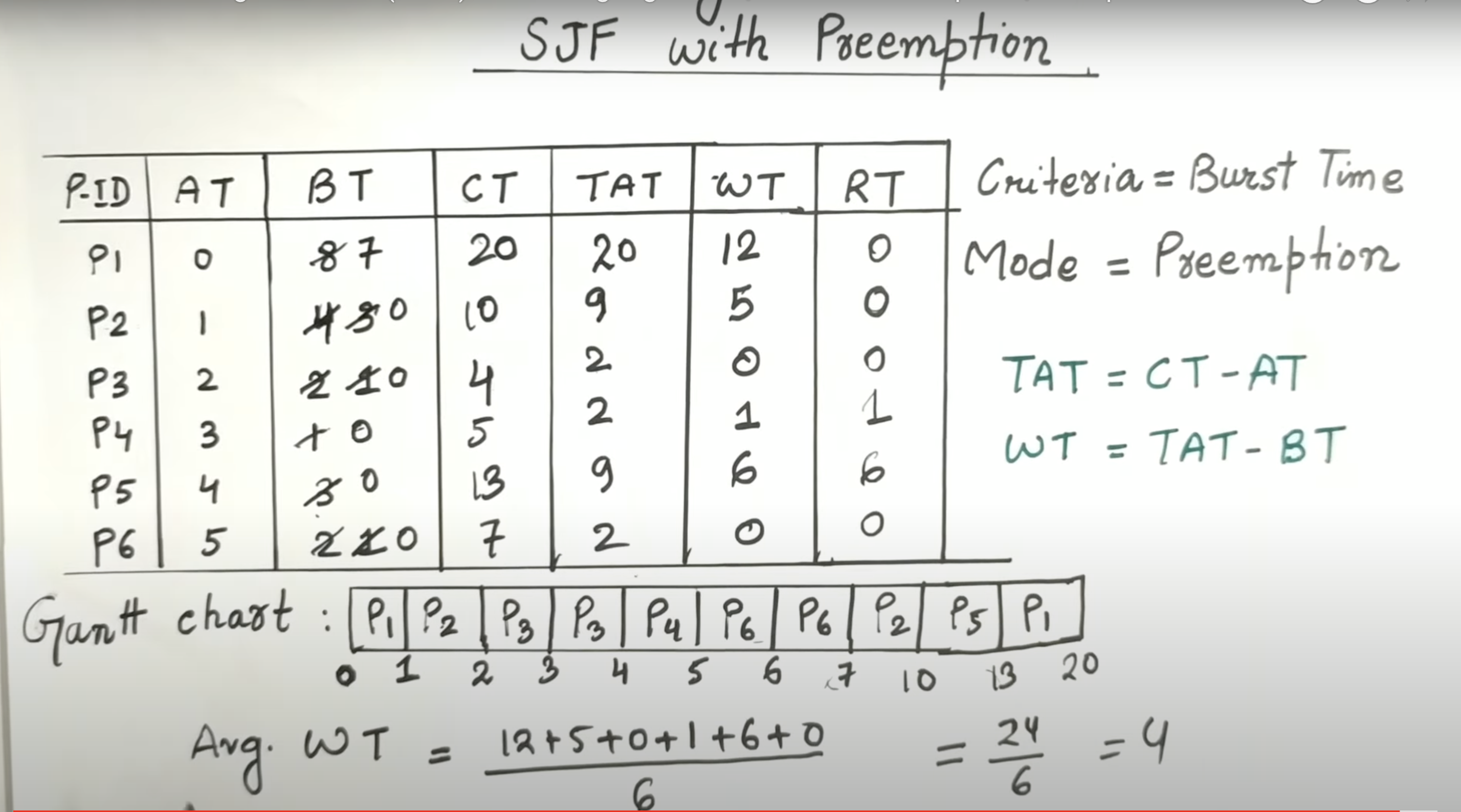

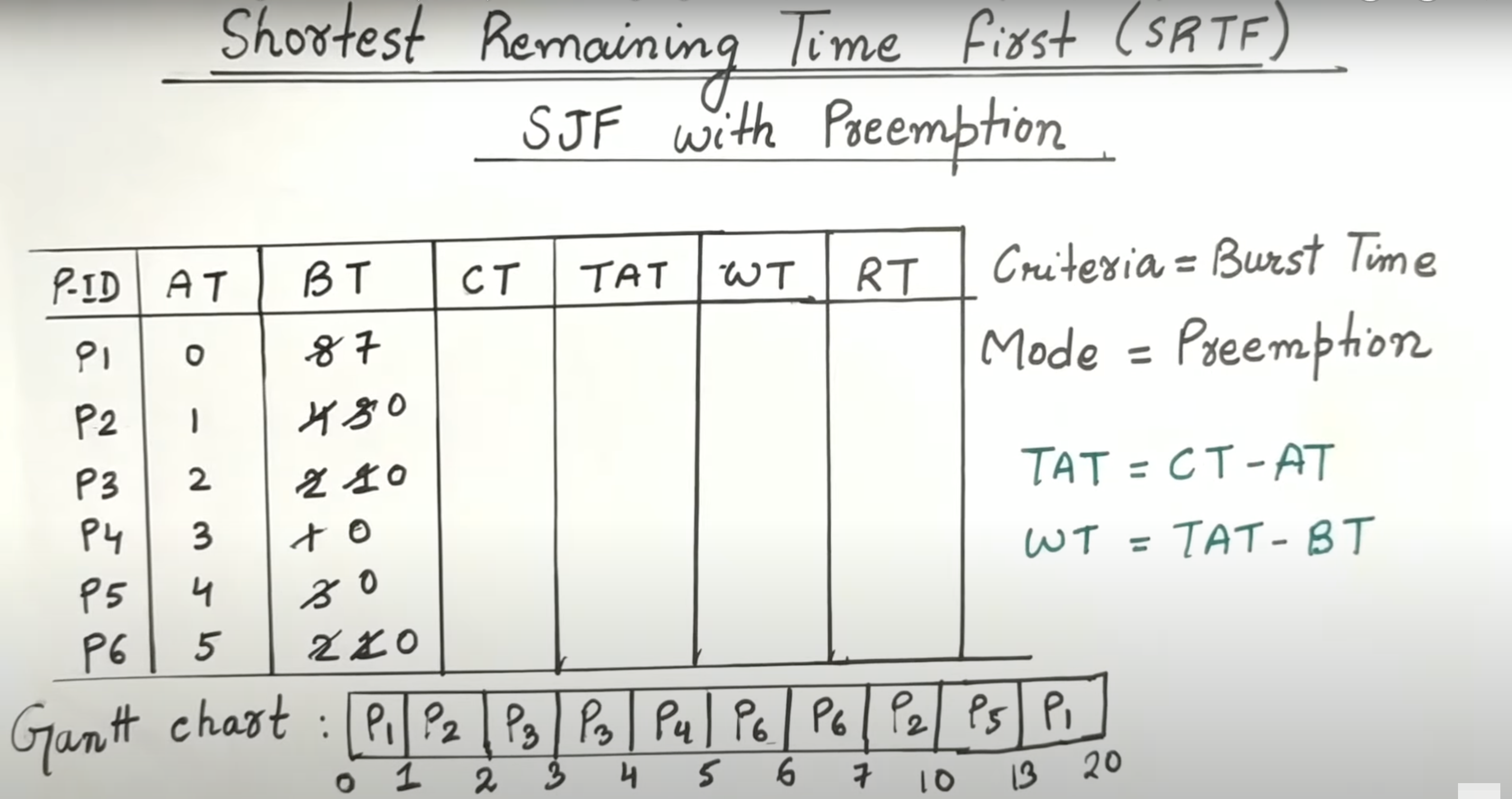

SRTF(Shortest Remaining Time First ) Algorithm

• Method with Preemption
• Criteria :Burst
• Mode: Premption
• Premption: Means cpu will execute the process to a fixed quantumn time it will not care for process completion

gantt
title Shortest Remaining Time First Gantt Chart
dateFormat HH:mm
axisFormat %H:%M
Initial milestone : milestone, m1, 00:00, 0m
P1 :1m
P2:1m
P3:1m
P3:1m
P4:1m
P6:1m
P6:1m
P2:3m
P5:3m
P1:7m
Final milestone : milestone,

Advantages of SRTF

• Minimun Average waiting among all the algorithms
• May cause high waiting and high response times for CPU bound jobs
• I mpractical

Priority Scheduling

Priority Scheduling (Non Preemptive)

PID	Arrival Time	Priority Value	Burn Time
P0	0	5	3
P1	1	3	5
P2	2	15	8
P3	3	12	6

PID	AT	PV	BT	TAT	WT	ST	ET
P0	0	5	3	3	0	0	3
P1	1	3	5	21	16	19	22
P2	2	15	8	9	1	5	11
P3	3	12	6	14	8	13	17

gantt
title Priority Scheduling (Non Preemptive) gantt chart
dateFormat HH:mm
axisFormat %H:%M
Initial milestone : milestone, m1, 00:00, 0m
P0:5m
P2:8m
P3:6m
P1:5m

Priority Scheduling (Preemptive)

PID	Arrival Time	Priority Value	Burn Time
P0	0	5	3
P1	1	3	5
P2	2	15	8
P3	3	12	6

PID	AT	PV	BT	TAT	WT	ST	ET
P0	0	5	3	17	14	0	17
P1	1	3	5	21	16	17	22
P2	2	15	8	8	0	2	10
P3	3	12	6	13	7	10	15

gantt
title Priority Scheduling (Non Preemptive) gantt chart
dateFormat HH:mm
axisFormat %H:%M
Initial milestone : milestone, m1, 00:00, 0m
P0:2m
P2:8m
P3:6m
P0:1m
P1:5m

• Starving of Low Priority in Priority Scheduling
  • Solution: Aging

Round Robin Scheduling

• Uses time Quantum
• Circular Queue(ready queue)
• Average waiting time can be higher but response time is good
• Sensitive to quantumn
  • smaller quantum time: context switch overhaed
  • large quantum : become FCFS

PID Time Quantum=2	AT	BT
P0	0	3
P1	1	1
P2	1	5

graph LR;
A[P0<br>0-2]
B[P1<br>2-3]
C[P2<br>3-5]
D[P0<br>5-6]
E[P2<br>6-9]
A-->B-->C-->D-->E

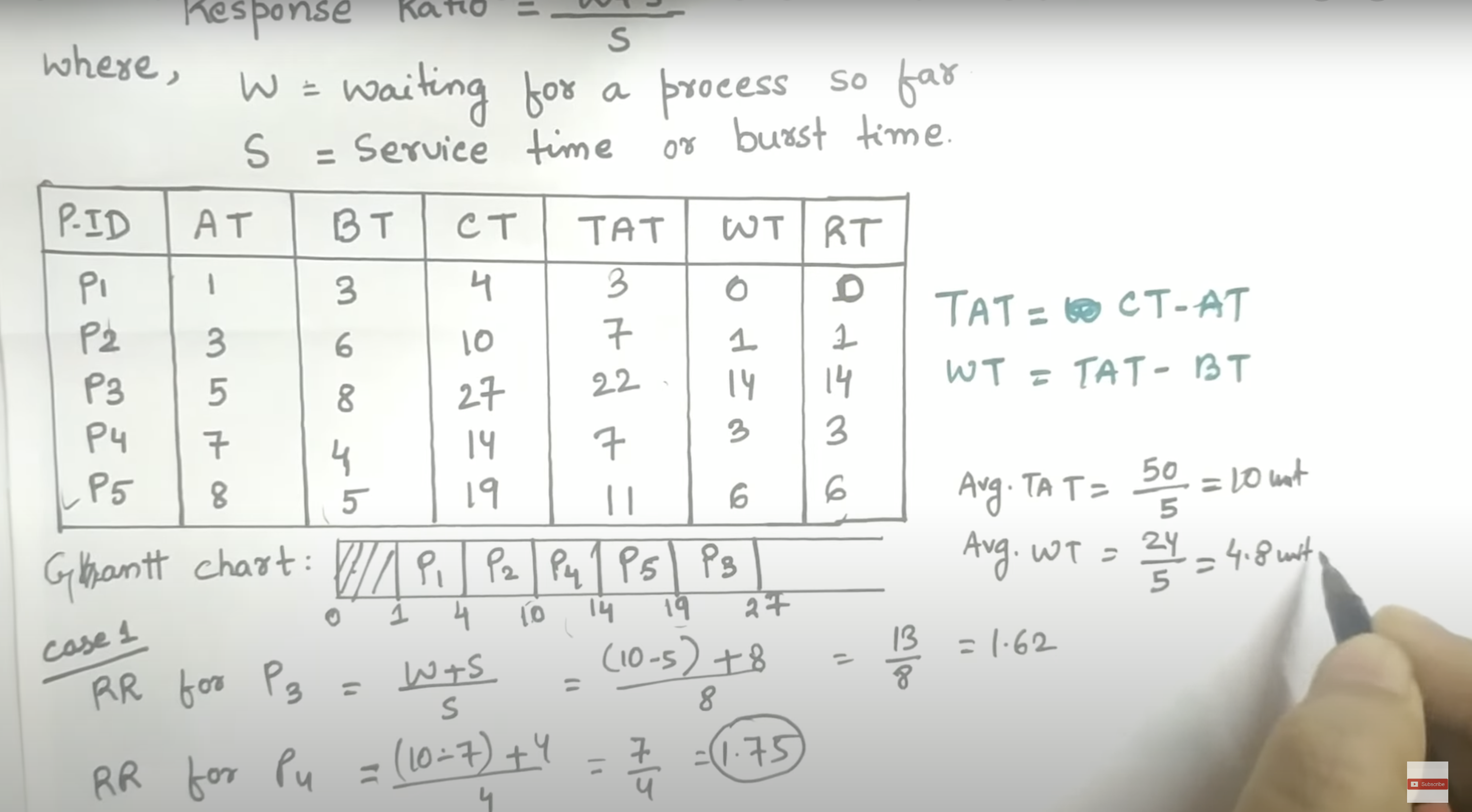

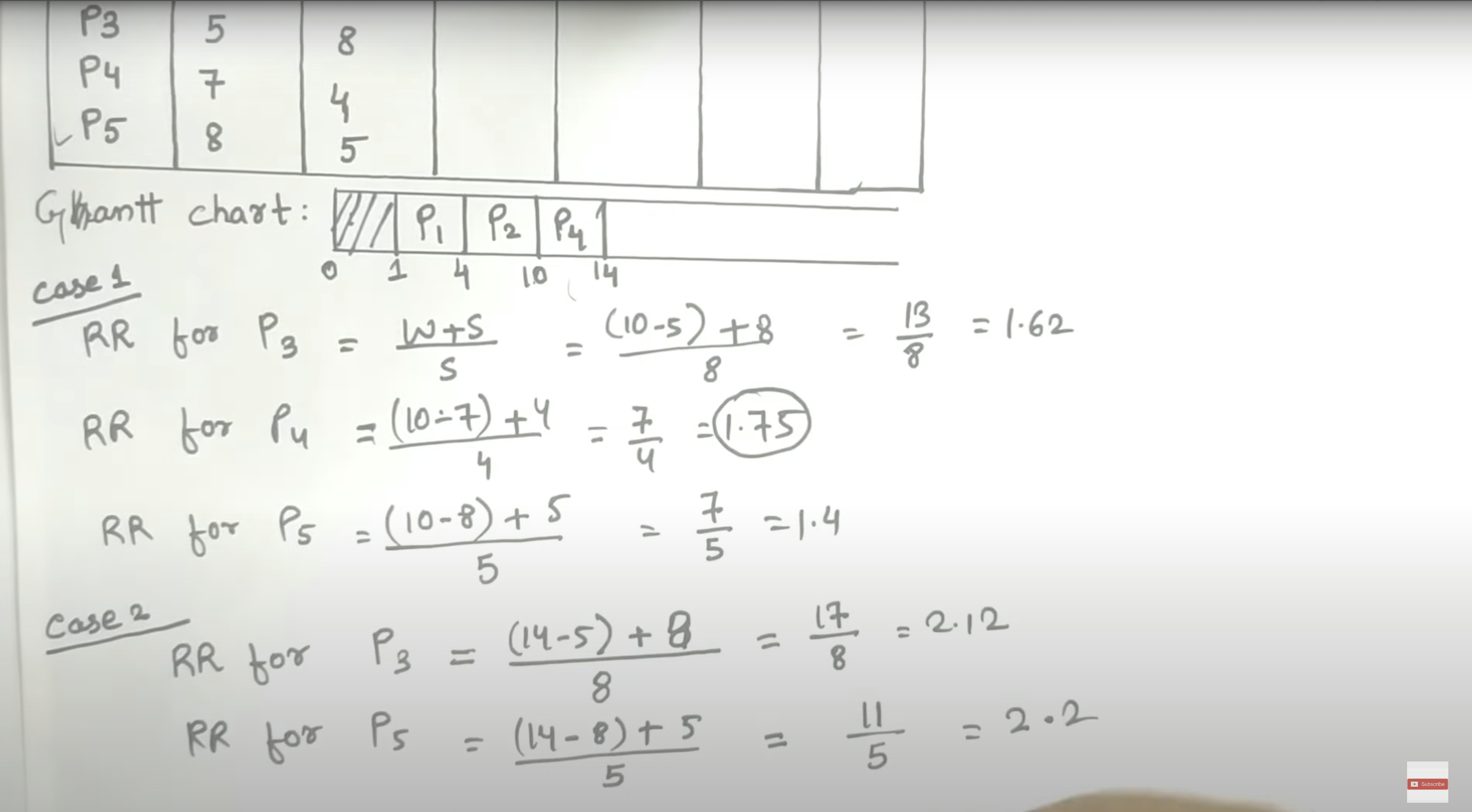

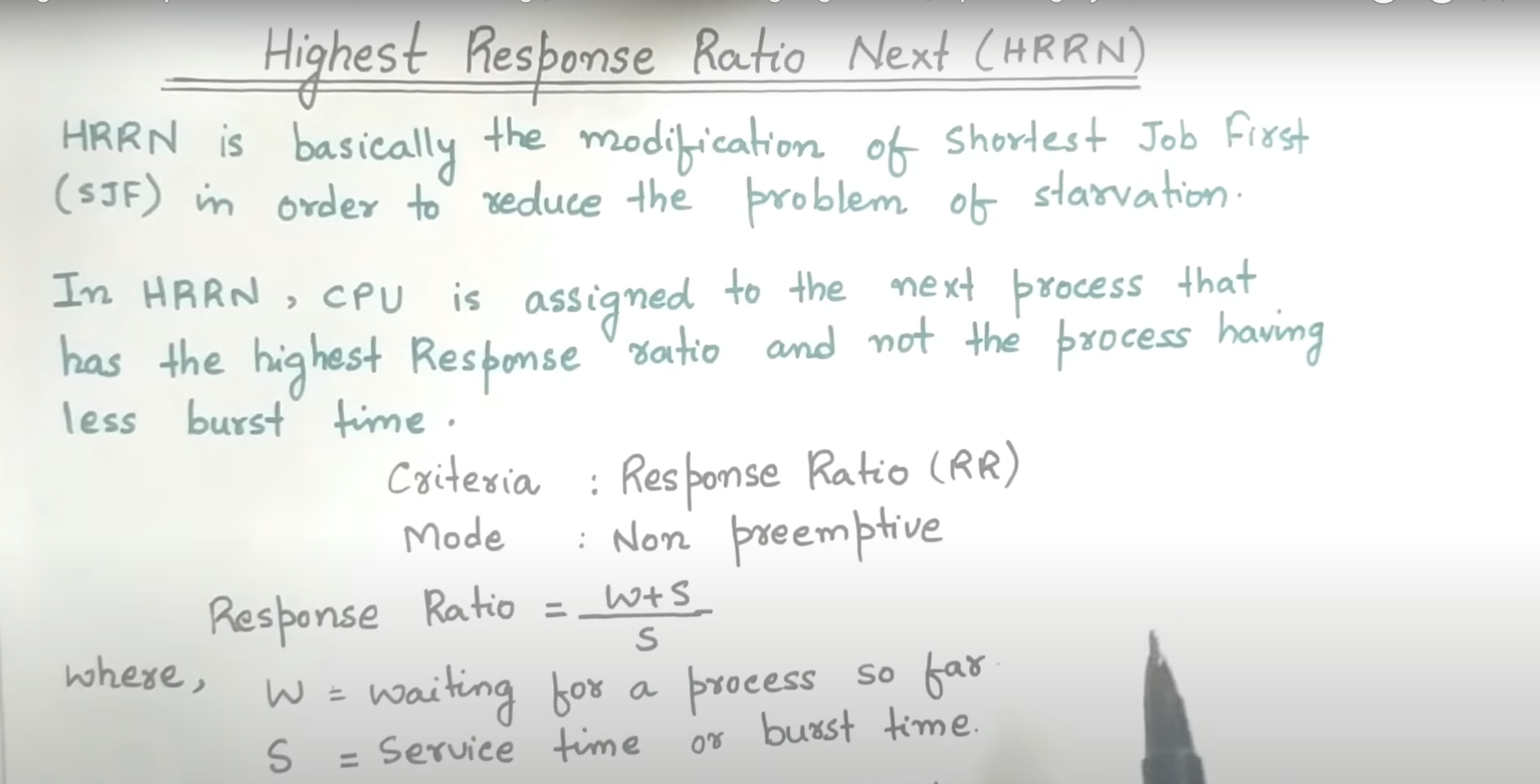

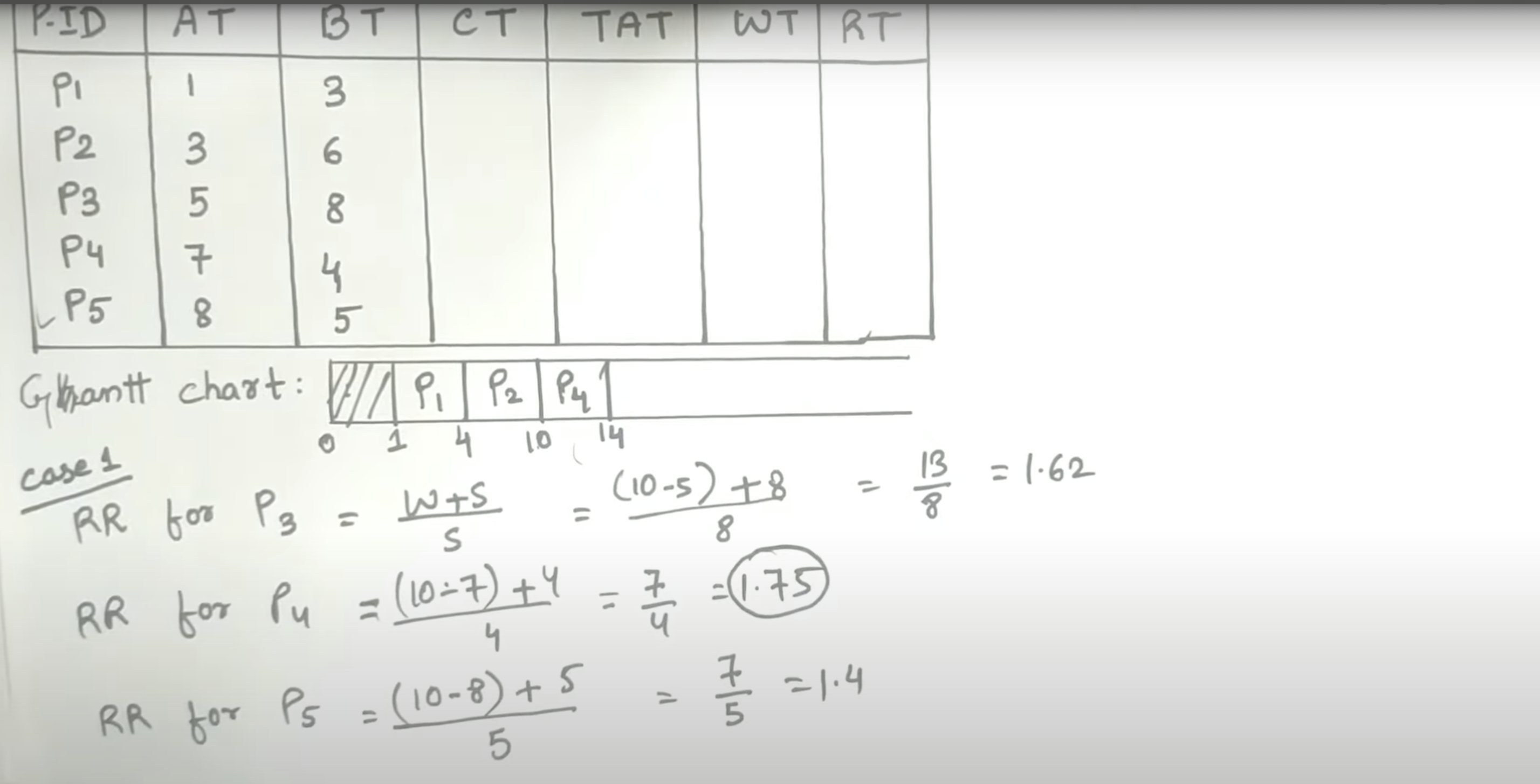

Highest Response Rate Next (HRRN)

Multilevel Queue Schedulling Algorithm (MLQ)

graph LR;
A[System Process]
B[Interactive Process]
C[Batch Process]
D[Student Process]
E[CPU]
A--Ready Queue 1-->E
B--Ready Queue 2-->E
C--Ready Queue 3-->E
D--Ready Queue 4-->E
X[High Priority]
Y[Medium Priority]
Z[Lowest Priority]
X-->A
Y-->B
Z-->D
T[.........]
T-->C

graph LR;
A[System Process<br>P1,P2]
B[Interactive Process<br>P3,P4]
C[Batch Process<br>P5,P6]
D[Student Process<br>P7]
D--Let P7 is Sent-->E
E[CPU<br>P7 executing]
A--Ready Queue 1<br>Round Robin-->E
B--Ready Queue 2<br>FCFS-->E
C--Ready Queue 3<br>SJF-->E
D--Ready Queue 4<br>Priority-->E
X[High Priority]
Y[Medium Priority]
Z[Lowest Priority]
X-->A
Y-->B
Z-->D
T[.........]
T-->C

graph LR;
A[System Process<br>P1,P2<br>Lets P8 new came]
B[Interactive Process<br>P3,P4]
C[Batch Process<br>P5,P6]
D[Student Process<br>P7]
E--P7 sent Back-->D
E[CPU<br>P7 suspended<br>P8 came]
A--Ready Queue 1<br>Round Robin-->E
B--Ready Queue 2<br>FCFS-->E
C--Ready Queue 3<br>SJF-->E
D--Ready Queue 4<br>Priority-->E
X[High Priority]
Y[Medium Priority]
Z[Lowest Priority]
X-->A
Y-->B
Z-->D
T[.........]
T-->C

• Processes from one queue to another queue will not change
• This will cause startvation
• A process can have a longer wait time and cause starvation

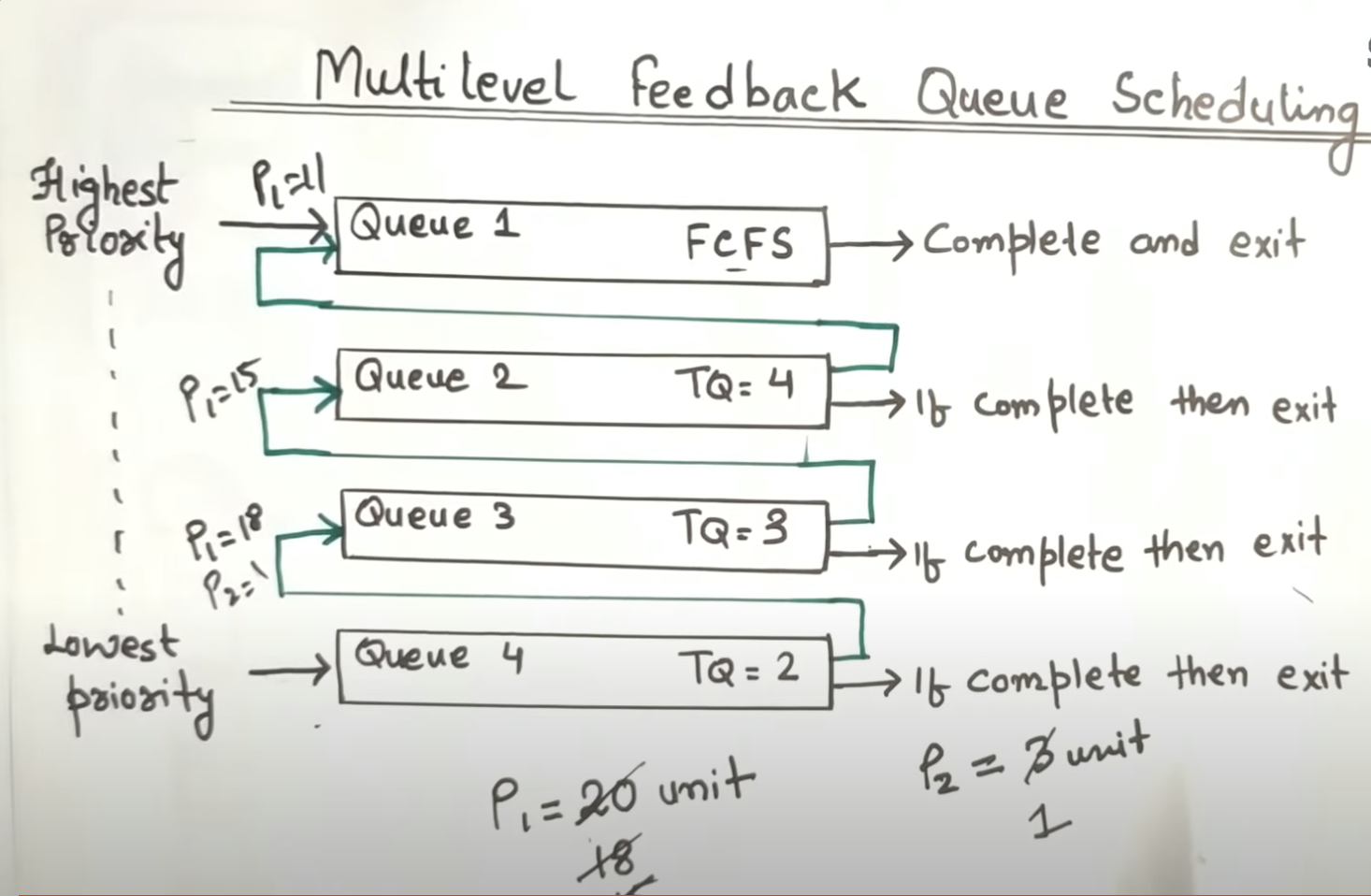

MultiLevel Feedback Queue Scheduling Algorithm(MLFQ)

• No starvation problem
• Windows and Mac OS uses MLFQ
• Linux uses MLQ but now it uses more advanced algorithm
